Connects ProTools to an SSL E/G Computer. Locate from your
console, or run SSL mixes from ProTools. Compatible
with all ProTools versions to date: over 110 in use in 9
**Update now available for HUI midi protocol**
C2 Dual/Stereo Compressor
High performance stereo mix or instrument compressor.130dB dynamic
external sidechain inputs, 'Crush' mode, fast limit. New generation
fast slew rate amplifiers.(Also available in multichannel versions) Two
sets of controls and two audio channels. UK£1950
**Sidechain Filter option now available**
C2M Stereo Compressor
One set of controls and two audio channels. UK£1575.
C2R 2-Channel Expander
Two channel audio expander to add to a C2 or MC2 for multichannel systems. UK£1250
C1 Dual/Stereo Compressor
Original black front panel version of C2 compressor.(No sidechain inputs, or crush facility) Two sets of controls and two audio channels. UK£1575
Smart Guitar Di System
Transmit box, Receive Box, Power supply. UK£245
**Re-Amp option now available**
Smart Guitar Di -Deluxe System
Transmit box, Receive Box, Power supply. UK£315
01/7 Channel Amplifier Card
Replacement Mic, Line and Channel amplifiers for SSLE and G series recording consoles. UK£315
C2 Compressor Family:
The C2 compressor houses two independant mono compressors, or in STEREO mode, the left-hand controls operate both audio channels, with the right-hand controls not used, giving true Stereo operation. The C2M version has one set of controls and two audio channels for Stereo use, whilst the C2R is a dual channel remote expander for building up to 8 channel systems controlled from one C2M or C2.
The characteristic sound of this unit arises mostly from the fast response at the onset of compression, which when delayed to occur around the mid range attack settings (after 0.3 to 3 milliseconds) results in a window through which transients can still pass. When used accross a mix, or with any dynamic programme, this has the effect of adding 'punch', as the sidechain 'breathes' around these transients, while still controlling overall levels. CRUSH mode has been developed as an extension of this 'musicality', adding to and accentuating the factors involved in producing the character of the unit. CRUSH may sound surprising to those interested in more gentle applications, being capable of exaggerated compression effects, but in conjunction with the fast limit settings also introduced with this unit, it allows the C2 to be used for a much wider range of applications than the C1.
Priced at UK£30 per a pair of cables (one per channel).
High Pass sidechain cable.pdf
|C2 Family Specifications:
|100v-240v AC selectable, 30 watts.
|Below -104 dBm (flat 20Hz-20Khz).
|Below 0.005% (1K/+4 THD 20Hz-20Khz)
|Within 1/2dB from 20Hz to 100Khz.
|Depth in rack:
|Balanced, impedance 1K8 per leg.
|Balanced, impedance 10K per leg.
|Discrete transistor. Above +26dBm into 600 ohm load.
|Adjustable -20 to +20dBm.
|Adjustable 0 to +20dBm.

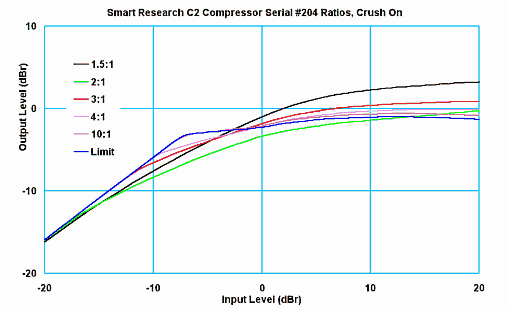

C2 Family Performace Graphs:
C2 Film/Multichannel Systems:
In a normal C2 unit, when in 'Stereo' mode, the left channel front panel controls become the masters for both the left and right audio paths, and the right hand controls become inactive. Both audio paths are 'sensed', the result processed, and then acted on equally to eliminate image shift (so a 'peak' on either channel results in the compression of both). By extension of this method, in a multichannel system, the master set of controls can be interlinked to sense and control any number of audio channels where image shift would otherwise be a problem. When 'stereo'or 'left master' mode is selected, the left hand front panel controls become the masters for all channels in the system.
A multichannel system comprises a master C2 or C2M unit, to which is added one additional remote controlled 1RU audio rack per pair of extra channels needed. A four channel system would therefore need one master C2 (or C2M), and one C2R (remote C2). The system can be extended as needed, for more or less channels, or the additional channels unplugged and the master unit used on its own functioning as a normal unit (the only difference being that the 'sidechain' XLR connectors on the rear panel are changed to multipin types for additional control lines to and from the C2R chain). As an example for film mix formats this can be used to build a system with three interlinked channels for L-C-R to avoid image shifting, with suround L-R handled by a second pair of channels. Sub bass can be either processed separately or combined with the surround channels.
This approach has been adopted for two reasons: first as the most
in allowing for different choices of mix formats and the ability for
C2R channel capacity to 'float' between control rooms or be purchased
needed, and second because of being able to offer the C2R unit at a
reasonable sale price than a complete unit. In allowing for the above
we have also provided for further customisation. The master C2 unit has
an external fader input, and we would be happy to discuss any further
C1 Dual/Stereo Compressor
Original black front panel version of C2 compressor. (Two sets of
and two audio channels, but no sidechain inputs, or crush facility).
in UK and US west coast studios.
|100v-240v AC selectable, 30 watts.
|Below -92 dBm (flat 20Hz-20Khz).
|Below 0.025% (1K/+4 THD 20Hz-20Khz)
|Within 1/2dB from 20Hz to 20Khz.
|Depth in rack:
|Balanced, impedance 10K per leg.
|Unbalanced (p2 hot default). Above +21dBm.
|Adjustable -15 to +15dBm.
|Adjustable 0 to +15dBm.
Smart Guitar D.i System
Designed to solve many instrument recording and D.i problems. For instance, one guitar feeding down long cables to 3 amps in a different area, without hums or change of tone. Includes: Balanced line driver for long cables; speaker level D.i input, and one unity gain Di Box/Splitter for two D.i or Amp feeds. Conceived at Real World Studios, to solve the problem of a guitarist wanting to play in the control room and have amplifiers set up in a live room sometimes several hundred feet away. Prototypes were also used at Virgin/ EMI Townhouse and Manor studios. Since then producers and artists such as Tom Lord Alge, Peter Gabriel, Paul Weller, and Tears for Fears have bought systems. Four systems were used to cure problems for Peter Gabriel's live show, where two stages had to be inter -connected with 300 feet of cable carrying guitar signals from radios to effects pedals on both stages and back to amps on the main stage without degradation, (allowing each stage to be patched independently).
The system comprises a TRANSMIT box and RECEIVE box. The TRANSMIT
has a high impedance input and line driver, which will drive long
to the RECEIVE box input, which feeds the Di/splitter giving two
outputs.(In the Deluxe version, there are two Di/splitters in both the
TRANSMIT and RECEIVE boxes, giving 8 isolated outputs) In addition, the
RECEIVE unit has a speaker simulator input, so you can plug the speaker
output of an amp in for 'dirty' Di sounds with or without a speaker
All the Di/splitters on both boxes have break jack inputs and can be
as separate Di's if desired, as well as earth lift switches to stop hum
problems. This means there are a total of 8 outputs with the Deluxe
(or 2 on the normal system); a line driver and receiver; and a speaker
Di System Re-Amp cable:
Used to send a recorded signal back through
a amp, pre-amp, or effects pedals for further treatment. XLRF
input to standard mono jack, incorporating a balanced to unbalanced
pad. Can be used to feed the D.i System 'Instrument' input for
distribution to several devices; or one isolated output to an amp
or pedal if the system is being used at line level. UK£20
Smart Guitar D.i System - Deluxe version
As above, but including: Balanced line driver for long cables; speaker level D.i input, 4 unity gain Di Box/Splitter for up to 8 D.i's or Amp feeds.

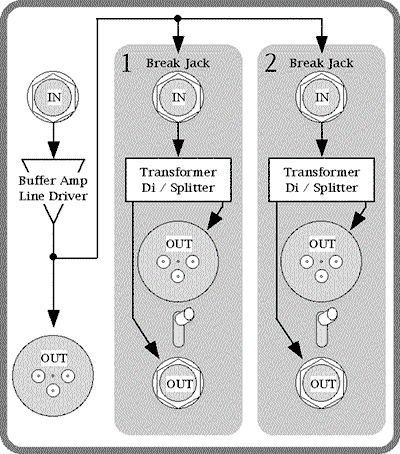

Block Diagram of Deluxe TRANSMIT box
(normal version does not have Di/Splitters)
Block Diagram of Deluxe RECEIVE box
(normal version has only one Di/Splitter channel)
01/7 Channel Amplifier Card
High performance Mic and Line Amplifiers, Channel Switching and Buffers. Upgrade for SSL-E and -G series* Channel Modules. Easy to fit card.
The Input Card contains a significant part of the circuitry in each console channel module, and can therefore greatly influence overall module performance. Mic, line and insert return inputs and selector switching; channel fader selector switching; phase reverse circuitry and buffers feeding the record bus outputs all reside on this card. Operationally, our mic-amp offers 16; 4dB gain steps from +4dB to +64dB; and silent phantom power switching (the output mutes to avoid thumps). The card is easy to install by soldering a two wire link, and can be swapped back with no changes to the module. The measurements for the card appear on the following page, and to date (perhaps more importantly), all the opinions expressed to us by users have been favourable (most being surprised at a quite audible difference). The design philosophy has been to incorporate every factor that may yield beneficial performance; (detailed below) and score as highly as possible in each; the most crucial being the sound of the final circuitry. The design has been the result of some five years of research, a process that included surveying every op-amp and switch I.C currently available, with the final devices chosen through auditioning those short listed.
Subjective but potentially audible factors include the use of DC-servo amplifiers in all circuits to avoid electrolytic capacitors. Transformerless input. Removal of all wiring in gain critical areas of circuit. Mic amp gain is remote controlled, also allowing control from existing mic gain controls. Use of fet/transistor hybrid 'Butler' input op-amps. These are latest generation devices, and tend toward even harmonic distortion components. Total symmetry to minimise phase error in all balanced circuits. Use of latest generation electronic switches to reduce switch-on impedance and hence minimise switch colouration.
Measurable factors include: Noise floor. Distortion. Slew rate/frequency response. Headroom. Common Mode Rejection Ratio. Switch 'off' isolation.
We believe that the most significant factors affecting the audible performance in this case are slew rate, and switch 'off' isolation. The older NE5534 op-amp used in the existing channel has a quoted slew rate of 6v/µs with 22pf compensation; which can be further degraded by capacitors added to the feedback path to improve stability. The op-amp we use is unity gain stable, needing no compensation capacitors, and has a slew rate of 22v/µs; an almost four-fold improvement. With regard to the existing electronic switches, if signal transients approach within 5 volts of clipping they can break through the J-fets used. These devices also exhibit significant on-impedance. Both of these factors do not apply to the analogue switches used in our design. Examine the following figures yourself, and if you would be interested to hear the difference, please call us.

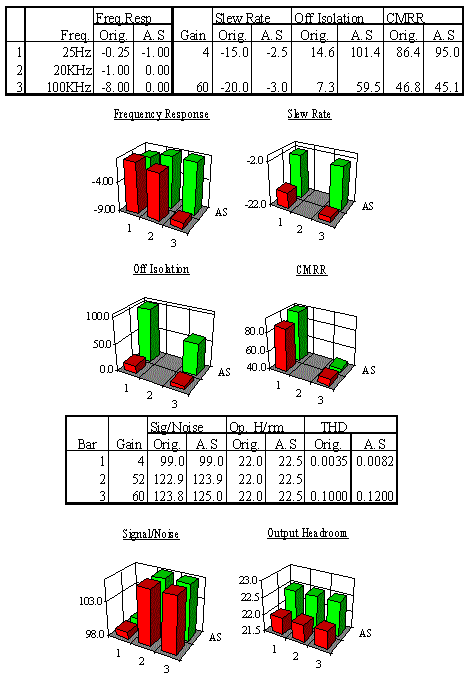

The following figures compare the Smart Research 01/7 Channel input amplifier to the original input card measured at Metropolis Audio (Australia). Note that these figures are not necessarily guaranteed for other situations. All figures are measured 22Hz-22KHz RMS at the channel insert send; for 3 gain or frequency settings as indicated in the graphs as 1,2 and 3.
CMRR (dBm) measured with -20dBm/1Khz into + and - inputs. Figures
Distortion (%) measured with 0dB/1Khz input.
Off isolation (dBm) with +10dBm/1Khz input; and input not selected. Figures ref: +10dBm.
Noise measurements (dBm) are with 150ohm source impedance.
Slew rate (microseconds) is measured as time for output to reach 90% of maximum output
Frequency response (dBm) measured with -60 in/0dBm out for Mic Amps.
SSL E or G* series consoles.
*Please contact factory for details and availability*
SING SING STUDIOS, MELBOURNE. (48 frame SSL4000E, extended to 64 using one producer table)
* SSL,E,G-series, and Total Recall are all trademarks of Solid State Logic Ltd.
